快速开始

canvas 是 H5 新增加的标签我们可以通过 JavaScript Canvas API(2D) 或 WebGL API(3D) 绘制图形及图形动画, 现阶段主要学习 2D 相关 API

htmljs

html

<!DOCTYPE html>
<html lang="zh-cn">
  <head>
    <meta charset="UTF-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="referrer" content="no-referrer" />
    <title>Canvas and SVG</title>
    <style>
      * {
        margin: 0;
        padding: 0;
      }
      body {
        width: 100vw;
        height: 100vh;
        overflow: hidden;
        padding: 20px;
      }
      #app {
        border: 1px solid #f00;
      }
    </style>
  </head>
  <body>
    <canvas id="app">Your browser does not support the canvas element.</canvas>
    <script src="./index.js" type="module"></script>
  </body>
</html>

window.onload = function () {
  const canvasDom = document.getElementById("app");

  // 2d:   canvas API 是 CanvasRenderingContext2D 类的实例
  // webgl: webgl API 是 WebGLRenderingContext    类的实例
  // 加上注释可以让编辑器显示代码提示
  /** @type {CanvasRenderingContext2D} */
  const ctx = canvasDom.getContext("2d");
  console.log(ctx instanceof CanvasRenderingContext2D); // true

  // 设置宽高属性
  // 注意了: 这是设置 canvasDom 的属性, 而不是样式
  // 这个dom对象是 HTMLCanvasElement 类的实例, 它本身就有
  // width 和 height 属性, 但是它不是 style 的属性
  canvasDom.width = window.innerWidth;
  canvasDom.height = window.clientHeight;
  console.log(ctx.canvas instanceof HTMLCanvasElement); // true
};

快速开始:体验用代码画图

window.onload = function () {
  function initCanvasDom() {
    const canvasDom = document.getElementById("app");
    canvasDom.width = window.innerWidth;
    canvasDom.height = window.innerHeight;
    return canvasDom;
  }

  // 0. 初始化dom & 获取 canvas上下文
  const canvasDom = initCanvasDom();
  const ctx = canvasDom.getContext("2d");

  // 1.将 "画笔" 放到指定的位置
  ctx.moveTo(50, 50);

  // 2.用 "画笔" 画一条线到指定的位置
  ctx.lineTo(100, 50);

  ctx.stroke();
};

思考 🤔

为什么不应该用 css 的方式去设置 canvas 的宽度和高度

注意我说到的是 不应该 而非 不可以, 实际上是可以通过 css, 去强行改变 canvas 元素显示的宽度和高度的, 既然可以改变那为什么不应该使用 css 设置宽高呢? 究其原因: 主要是因为 canvas 元素有 2 个尺寸

内在尺寸: 或者叫绘图的缓冲区尺寸, 可以通过 HTMLCanvasElement 类的 width 和 height 属性来设置
显示尺寸: 展示在浏览器中的尺寸, 默认情况下, 是和 HTMLCanvasElement 类的 width 和 height 相同, 如果非要不同就会拉伸/缩放

jshtml

window.onload = function () {
  function initCanvasDom(id) {
    const canvasDom = document.getElementById(id);
    canvasDom.width = 200;
    canvasDom.height = 200;
    return canvasDom;
  }

  function drawLine(canvasDom) {
    const ctx = canvasDom.getContext("2d");
    ctx.moveTo(50, 50);
    ctx.lineTo(100, 50);
    ctx.stroke();
  }

  drawLine(initCanvasDom("app"));
  drawLine(initCanvasDom("app2"));
};

html

<!doctype html>
<html lang="zh-cn">
  <head>
    <meta charset="UTF-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="referrer" content="no-referrer" />
    <title>Canvas and SVG</title>
    <style>
      * {
        margin: 0;
        padding: 0;
      }
      body {
        width: 100vw;
        height: 100vh;
        overflow: hidden;
        padding: 20px;
      }
      #app {
        background: #f00;
      }
      #app2 {
        background: #f00;
        width: 400px;
        height: 400px;
      }
    </style>
  </head>
  <body>
    <canvas id="app">Your browser does not support the canvas element.</canvas>
    <canvas id="app2">Your browser does not support the canvas element.</canvas>
    <script src="./index.js" type="module"></script>
  </body>
</html>

diff

画线条

绘制线条并设置样式

window.onload = function () {
  function initCanvasDom(id) {
    const canvasDom = document.getElementById(id);
    canvasDom.width = 500;
    canvasDom.height = 500;
    return canvasDom;
  }

  const canvasDom = initCanvasDom("app");
  const ctx = canvasDom.getContext("2d");

  // 设置线条的粗细(高度)
  ctx.lineWidth = 10;

  // 设置线条的样式
  ctx.strokeStyle = "#f00";

  // 设置线条两端的样式
  ctx.lineCap = "round"; // butt(默认)/round/square

  // 设置线条链接处的样式(需要两条线才能看出效果来)
  ctx.lineJoin = "round"; // miter(默认)/round/bevel

  ctx.moveTo(50, 50);
  ctx.lineTo(200, 50);
  ctx.stroke();
};

lin-style

绘制多个线条

beginPath

window.onload = function () {
  function initCanvasDom(id) {
    const canvasDom = document.getElementById(id);
    canvasDom.width = 500;
    canvasDom.height = 500;
    return canvasDom;
  }

  const canvasDom = initCanvasDom("app");
  const ctx = canvasDom.getContext("2d");

  // line1
  ctx.moveTo(50, 50);
  ctx.lineTo(200, 50);
  ctx.lineWidth = 10;
  ctx.strokeStyle = "#f00";
  ctx.stroke();

  // line2
  // 如果没有调用 beginPath 开启新的绘制路径(拿起另外一支笔)
  // 那么前面 line1 的样式会被后面设置的样式给覆盖掉
  // 因此为了避免影响, 应该每次划线之前拿起新的一支笔(调用: beginPath)
  ctx.beginPath();
  ctx.moveTo(50, 100);
  ctx.lineTo(300, 100);
  ctx.lineWidth = 20;
  ctx.strokeStyle = "#0f0";
  ctx.stroke();
};

利用线条绘制一些简单图形

window.onload = function () {
  function initCanvasDom(id) {
    const canvasDom = document.getElementById(id);
    canvasDom.width = 500;
    canvasDom.height = 500;
    return canvasDom;
  }

  const canvasDom = initCanvasDom("app");
  const ctx = canvasDom.getContext("2d");

  function drawLines(startPos = { x: 0, y: 0 }, linesPos = [], lineColor = "#f00", lineWidth = 10) {
    ctx.beginPath();
    ctx.moveTo(startPos.x, startPos.y);

    for (let i = 0; i < linesPos.length; i++) {
      const linePos = linesPos[i];
      ctx.lineTo(linePos.x, linePos.y);
    }

    ctx.strokeStyle = lineColor;
    ctx.lineWidth = lineWidth;
    ctx.stroke();
  }

  // 三角形
  drawLines({ x: 100, y: 100 }, [
    { x: 100, y: 200 },
    { x: 200, y: 200 },
    // 默认情况下不会从最后一个点链接到第一个点,
    // 所以需要最后一个点和第一个点位置一样,这样才能闭合
    { x: 100, y: 100 },
  ]);

  // 正方形
  drawLines({ x: 100, y: 300 }, [
    { x: 200, y: 300 },
    { x: 200, y: 400 },
    { x: 100, y: 400 },
    { x: 100, y: 300 },
  ]);
};

preview

由上图可以发现, 利用最后一个点和第一个点重合的方式闭合划线的方式, 会让连接处出现 "瑕疵"

那有没有办法可以避免这个 "瑕疵" 呢? 让最后一个点自动连接到起始点

闭合路径

closePath

window.onload = function () {
  function initCanvasDom(id) {
    const canvasDom = document.getElementById(id);
    canvasDom.width = 500;
    canvasDom.height = 500;
    return canvasDom;
  }

  const canvasDom = initCanvasDom("app");
  const ctx = canvasDom.getContext("2d");

  function drawLines(startPos = { x: 0, y: 0 }, linesPos = [], lineColor = "#f00", lineWidth = 10) {
    ctx.beginPath();
    ctx.moveTo(startPos.x, startPos.y);

    for (let i = 0; i < linesPos.length; i++) {
      const linePos = linesPos[i];
      ctx.lineTo(linePos.x, linePos.y);
    }

    // 闭合路径:让最后一个点自动连接到起始点
    ctx.closePath();

    ctx.strokeStyle = lineColor;
    ctx.lineWidth = lineWidth;
    ctx.stroke();
  }

  // 三角形
  drawLines({ x: 100, y: 100 }, [
    { x: 100, y: 200 },
    { x: 200, y: 200 },
    // 默认情况下不会从最后一个点链接到第一个点,
    // 所以需要最后一个点和第一个点位置一样,这样才能闭合
    // { x: 100, y: 100 },
  ]);

  // 正方形
  drawLines({ x: 100, y: 300 }, [
    { x: 200, y: 300 },
    { x: 200, y: 400 },
    { x: 100, y: 400 },
    // { x: 100, y: 300 },
  ]);
};

绘制虚线

window.onload = function () {
  function initCanvasDom(id) {
    const canvasDom = document.getElementById(id);
    canvasDom.width = 500;
    canvasDom.height = 500;
    return canvasDom;
  }

  const canvasDom = initCanvasDom("app");
  const ctx = canvasDom.getContext("2d");

  function drawLine(startPos = { x: 0, y: 0 }, dashes = [5]) {
    ctx.beginPath();
    ctx.moveTo(startPos.x, startPos.y);
    ctx.lineTo(startPos.x + 300, startPos.y);
    ctx.strokeStyle = "red";
    ctx.lineWidth = 10;
    ctx.setLineDash(dashes);
    ctx.stroke();
  }

  drawLine({ x: 100, y: 150 }, [5]);
  console.log("lineDash-1", ctx.getLineDash());
  // [5, 5]

  drawLine({ x: 100, y: 250 }, [5, 10]);
  console.log("lineDash-2", ctx.getLineDash());
  // [5, 10]

  drawLine({ x: 100, y: 300 }, [5, 10, 15]);
  console.log("lineDash-3", ctx.getLineDash());
  // [5, 10, 15, 5, 10, 15]

  drawLine({ x: 100, y: 350 }, [5, 10, 15, 20]);
  console.log("lineDash-4", ctx.getLineDash());
  // [5, 10, 15, 20]
};

dash

填充图形

window.onload = function () {
  function initCanvasDom(id) {
    const canvasDom = document.getElementById(id);
    canvasDom.width = 500;
    canvasDom.height = 500;
    return canvasDom;
  }

  const canvasDom = initCanvasDom("app");
  const ctx = canvasDom.getContext("2d");

  function drawRect(positionArray = [], color = "#f00") {
    if (positionArray.length < 3) {
      return;
    }
    const [startPos, ...linesPos] = positionArray;
    ctx.beginPath();
    ctx.moveTo(startPos.x, startPos.y);
    for (let i = 0; i < linesPos.length; i++) {
      const item = linesPos[i];
      ctx.lineTo(item.x, item.y);
    }
    ctx.closePath();

    ctx.strokeStyle = color;
    ctx.lineWidth = 10;
    ctx.stroke();

    // 设置填充颜色并且填充
    ctx.fillStyle = color;
    ctx.fill();
  }

  drawRect([
    { x: 100, y: 100 },
    { x: 300, y: 100 },
    { x: 300, y: 300 },
    { x: 100, y: 300 },
  ]);
};

非零环绕原则

注意

只有在同一条路径路径中才会遵守这个绘制原则, 如果是不同的路径没有这个规则的影响

每次填充前从图形的中心拉出一条线, 看路径上与之相交的点是顺时针还是逆时针
默认 x = 0 如果是逆时针那么 x + 1, 如果是顺时针那么 x - 1
最后如果 x = 0, 就不会填充, 如果结果非零那么就会填充

注: 这个规则中的 x 是表示一个未知数, 不是坐标位置的意思

jshtml

window.onload = function () {
  function initCanvasDom(id) {
    const canvasDom = document.getElementById(id);
    canvasDom.width = 500;
    canvasDom.height = 500;
    return canvasDom;
  }

  const canvasDom = initCanvasDom("app");
  const ctx = canvasDom.getContext("2d");

  // 大的矩形是顺时针, 所以: x += 1
  ctx.moveTo(100, 100);
  ctx.lineTo(300, 100);
  ctx.lineTo(300, 300);
  ctx.lineTo(100, 300);
  ctx.closePath();

  // 小的矩形也是顺时针 x += 1
  ctx.moveTo(150, 150);
  ctx.lineTo(250, 150);
  ctx.lineTo(250, 250);
  ctx.lineTo(150, 250);
  ctx.closePath();

  // 注: 我只 stroke 绘制了一次, 且是同一个 path
  const fillColor = "#f00";
  ctx.strokeStyle = fillColor;
  ctx.lineWidth = 10;
  ctx.fillStyle = fillColor;
  ctx.stroke();
  ctx.fill();

  // 最后: 大矩形的 x = 1, 小矩形的 x = 2, 所以都会填充

  ///////////////////////////////////////////////////////
  // 这是第二个 canvas, 注意对比: 小矩形的绘制顺序不同 //
  ///////////////////////////////////////////////////////
  const canvasDom2 = initCanvasDom("app2");
  const ctx2 = canvasDom2.getContext("2d");

  // 大的矩形是顺时针, 所以: x += 1
  ctx2.moveTo(100, 100);
  ctx2.lineTo(300, 100);
  ctx2.lineTo(300, 300);
  ctx2.lineTo(100, 300);
  ctx2.closePath();

  // 小的矩形也是顺时针, 所以: x -= 1
  ctx2.moveTo(250, 150);
  ctx2.lineTo(150, 150);
  ctx2.lineTo(150, 250);
  ctx2.lineTo(250, 250);
  ctx2.closePath();

  // 注: 我只 stroke 绘制了一次, 且是同一个 path
  ctx2.strokeStyle = fillColor;
  ctx2.lineWidth = 10;
  ctx2.fillStyle = fillColor;
  ctx2.stroke();
  ctx2.fill();

  // 最后: 大矩形的 x = 1, 小矩形的 x = 0, 所以小矩形不会绘制
};

html

<!DOCTYPE html>
<html lang="zh-cn">
  <head>
    <meta charset="UTF-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="referrer" content="no-referrer" />
    <title>Canvas and SVG</title>
    <style>
      * {
        margin: 0;
        padding: 0;
      }
      body {
        width: 100vw;
        height: 100vh;
        overflow: hidden;
        padding: 20px;
      }
      #app,
      #app2 {
        border: 1px solid #f00;
      }
    </style>
  </head>
  <body>
    <canvas id="app">Your browser does not support the canvas element.</canvas>
    <canvas id="app2">Your browser does not support the canvas element.</canvas>
    <script src="./index.js" type="module"></script>
  </body>
</html>

shun

最后看效果图, 说明, 结论没错: preview

练习:绘制折线图表格

实现步骤简单封装

window.onload = function () {
  function initCanvasDom(id) {
    const canvasDom = document.getElementById(id);
    canvasDom.width = 500;
    canvasDom.height = 500;
    return canvasDom;
  }

  const canvasDom = initCanvasDom("app");
  const ctx = canvasDom.getContext("2d");

  const gridSize = 50;
  const { width, height } = ctx.canvas;
  const rows = Math.floor(height / gridSize);
  const cols = Math.floor(width / gridSize);

  // 绘制网格
  for (let i = 0; i < rows; i++) line chart{
    const y = i * gridSize - 0.5;
    ctx.beginPath();
    ctx.moveTo(0, y);
    ctx.lineTo(width, y);
    ctx.stroke();
  }

  for (let i = 0; i < cols; i++) {
    const x = i * gridSize - 0.5;
    ctx.beginPath();
    ctx.moveTo(x, 0);
    ctx.lineTo(x, height);
    ctx.stroke();
  }

  // 计算坐标系起点 和 终点
  const originPos = {
    x: gridSize,line chart
    y: height - gridSize,
  };
  const targetPos = {
    x: width - gridSize,
    y: gridSize,
  };

  // 绘制 x 轴
  ctx.beginPath();
  ctx.moveTo(originPos.x, originPos.y);
  ctx.lineTo(targetPos.x, originPos.y);
  ctx.strokeStyle = "#f00";
  ctx.stroke();

  // 绘制x轴箭头line chart
  ctx.beginPath();
  ctx.lineTo(targetPos.x - 10, originPos.y - 5);
  ctx.lineTo(targetPos.x - 10, originPos.y + 5);
  ctx.lineTo(targetPos.x, originPos.y);
  ctx.closePath();
  ctx.fillStyle = "#f00";
  ctx.fill();
  ctx.stroke();

  // 绘制 y 轴
  ctx.beginPath();
  ctx.moveTo(originPos.x, originPos.y);
  ctx.lineTo(originPos.x, targetPos.y);
  ctx.strokeStyle = "#f00";
  ctx.stroke();

  // 绘制y轴箭头
  ctx.beginPath();
  ctx.lineTo(originPos.x - 5, targetPos.y + 10);
  ctx.lineTo(originPos.x + 5, targetPos.y + 10);
  ctx.lineTo(originPos.x, targetPos.y);
  ctx.closePath();
  ctx.fillStyle = "#f00";
  ctx.fill();
  ctx.stroke();

  // 模拟折线图点的坐标数据
  const tableData = [
    { x: 100, y: 300 },
    { x: 200, y: 200 },
    { x: 300, y: 250 },
    { x: 400, y: 150 },
    { x: 400, y: 150 },
  ];

  // 绘制折线图所有的点
  const dotSize = 10;
  const halfDotSize = dotSize / 2;
  for (let i = 0; i < tableData.length; i++) {
    const item = tableData[i];
    ctx.beginPath();
    ctx.moveTo(item.x - halfDotSize, item.y - halfDotSize);
    ctx.lineTo(item.x + dotSize - halfDotSize, item.y - halfDotSize);
    ctx.lineTo(item.x + dotSize - halfDotSize, item.y + dotSize - halfDotSize);
    ctx.lineTo(item.x - halfDotSize, item.y + dotSize - halfDotSize);
    ctx.closePath();
    ctx.fillStyle = "#f00";
    ctx.fill();
    ctx.strokeStyle = "#f00";
    ctx.stroke();
  }

  // 绘制折线图所有点之间的连线
  const [start, ...dots] = tableData;
  ctx.beginPath();
  ctx.moveTo(start.x, start.y);
  ctx.lineWidth = 2;
  for (let i = 0; i < dots.length; i++) {
    const dot = dots[i];
    ctx.lineTo(dot.x, dot.y);
  }
  ctx.strokeStyle = "#f00";
  ctx.stroke();
};

class LineChart {
  canvasContext = null;
  constructor(width = 300, height = 300) {
    const canvasDom = document.createElement("canvas");
    canvasDom.width = width;
    canvasDom.height = height;
    this.canvasContext = canvasDom.getContext("2d");
    document.body.appendChild(canvasDom);
  }

  drawGrid(gridSize = 50) {
    const ctx = this.canvasContext;
    const { width, height } = ctx.canvas;
    const rows = Math.floor(height / gridSize);
    const cols = Math.floor(width / gridSize);

    // 绘制行
    for (let i = 0; i < rows; i++) {
      const y = i * gridSize - 0.5;
      ctx.beginPath();
      ctx.moveTo(0, y);
      ctx.lineTo(width, y);
      ctx.stroke();
    }

    // 绘制列
    for (let i = 0; i < cols; i++) {
      const x = i * gridSize - 0.5;
      ctx.beginPath();
      ctx.moveTo(x, 0);
      ctx.lineTo(x, height);
      ctx.stroke();
    }
  }

  // 绘制坐标系
  drawCoor(gridSize = 50, coorColor = "#f00") {
    const ctx = this.canvasContext;
    const { width, height } = ctx.canvas;

    // 计算坐标系起点 和 终点
    const originPos = {
      x: gridSize,
      y: height - gridSize,
    };
    const targetPos = {
      x: width - gridSize,
      y: gridSize,
    };
    this.originPos = originPos;
    this.targetPos = targetPos;

    // 绘制 x 轴
    ctx.beginPath();
    ctx.moveTo(originPos.x, originPos.y);
    ctx.lineTo(targetPos.x, originPos.y);
    ctx.strokeStyle = coorColor;
    ctx.stroke();

    // 绘制x轴箭头
    ctx.beginPath();
    ctx.lineTo(targetPos.x - 10, originPos.y - 5);
    ctx.lineTo(targetPos.x - 10, originPos.y + 5);
    ctx.lineTo(targetPos.x, originPos.y);
    ctx.closePath();
    ctx.fillStyle = coorColor;
    ctx.fill();
    ctx.stroke();

    // 绘制 y 轴
    ctx.beginPath();
    ctx.moveTo(originPos.x, originPos.y);
    ctx.lineTo(originPos.x, targetPos.y);
    ctx.strokeStyle = coorColor;
    ctx.stroke();

    // 绘制y轴箭头
    ctx.beginPath();
    ctx.lineTo(originPos.x - 5, targetPos.y + 10);
    ctx.lineTo(originPos.x + 5, targetPos.y + 10);
    ctx.lineTo(originPos.x, targetPos.y);
    ctx.closePath();
    ctx.fillStyle = coorColor;
    ctx.fill();
    ctx.stroke();
  }

  // 绘制折线图所有的点
  drawDots(tableData = [], dotSize = 10, dotColor = "#f00") {
    const ctx = this.canvasContext;
    const halfDotSize = dotSize / 2;
    for (let i = 0; i < tableData.length; i++) {
      const item = tableData[i];
      ctx.beginPath();
      ctx.moveTo(item.x - halfDotSize, item.y - halfDotSize);
      ctx.lineTo(item.x + dotSize - halfDotSize, item.y - halfDotSize);
      ctx.lineTo(item.x + dotSize - halfDotSize, item.y + dotSize - halfDotSize);
      ctx.lineTo(item.x - halfDotSize, item.y + dotSize - halfDotSize);
      ctx.closePath();
      ctx.fillStyle = dotColor;
      ctx.fill();
      ctx.strokeStyle = dotColor;
      ctx.stroke();
    }
  }

  // 绘制折线图所有点之间的连线
  drawLines(tableData = [], lineWidth = 2, lineColor = "#f00") {
    const ctx = this.canvasContext;
    const [start, ...dots] = tableData;
    ctx.beginPath();
    ctx.moveTo(start.x, start.y);
    ctx.lineWidth = lineWidth;
    for (let i = 0; i < dots.length; i++) {
      const dot = dots[i];
      ctx.lineTo(dot.x, dot.y);
    }
    ctx.strokeStyle = lineColor;
    ctx.stroke();
  }

  // 绘制柱状图矩形(后续会学到)
  drawBars(tableData = [], gridSize = 50, barColor = "#f00") {
    const ctx = this.canvasContext;
    for (const item of tableData) {
      ctx.fillRect(item.x, item.y, gridSize, this.originPos.y - item.y);
    }
  }
}

window.onload = function () {
  const lineChart = new LineChart(500, 500);
  lineChart.drawGrid();
  lineChart.drawCoor();

  const tableData = [
    { x: 100, y: 300 },
    { x: 200, y: 200 },
    { x: 300, y: 250 },
    { x: 400, y: 150 },
    { x: 400, y: 150 },
  ];
  lineChart.drawDots(tableData);
  lineChart.drawLines(tableData);
};

line-chart

绘制/清除矩形

rect 绘制矩形但并不会立即 stroke 或 fill,需要手动 stroke/fill 才能绘制, 并且调用多次也是一个 Path, 需要手动 beginPath
strokeRect 绘制矩形并且立即 stroke
fillRect 绘制矩形并且立即 fill
clearRect 清除矩形, 清除矩形内的填充颜色和线条等

者 3 个函数的参数都是一样的: rect(x, y, width, height)

x: 起始点的 x 坐标
y: 起始点的 y 坐标
width: 矩形的宽度
height: 矩形的高度

window.onload = function () {
  function initCanvasDom(id) {
    const canvasDom = document.getElementById(id);
    canvasDom.width = 500;
    canvasDom.height = 500;
    return canvasDom;
  }

  const canvasDom = initCanvasDom("app");
  const ctx = canvasDom.getContext("2d");

  ctx.strokeStyle = "#f00";
  ctx.rect(10, 10, 100, 100); // 这个就等同于下面这 5 行代码
  // ctx.moveTo(10, 10);
  // ctx.lineTo(100, 10);
  // ctx.lineTo(100, 100);
  // ctx.lineTo(10, 100);
  // ctx.closePath();
  ctx.stroke(); // 需要手动 stroke/fill 才会绘制出来

  ctx.strokeStyle = "#0f0";
  ctx.strokeRect(120, 120, 100, 100); // 这个代码就等同于下面这 7 行代码
  // ctx.beginPath();
  // ctx.moveTo(120, 120);
  // ctx.lineTo(120 + 100, 120);
  // ctx.lineTo(120 + 100, 120 + 100);
  // ctx.lineTo(120, 120 + 100);
  // ctx.closePath();
  // ctx.stroke();

  ctx.fillStyle = "#00f";
  ctx.fillRect(230, 230, 100, 100); // 这个代码就等同于下面这 7 行代码
  // ctx.beginPath();
  // ctx.moveTo(230, 230);
  // ctx.lineTo(230 + 100, 230);
  // ctx.lineTo(230 + 100, 230 + 100);
  // ctx.lineTo(230, 230 + 100);
  // ctx.closePath();
  // ctx.fill();

  // 清空所有内容: 调用后上面绘制的内容全部被清除
  const { width, height } = ctx.canvas;
  ctx.clearRect(0, 0, width, height);
};

渐变色

createLinearGradient 创建线性渐变方案(常用)
createRadialGradient 创建径向渐变方案
createConicGradient 创建扇形渐变方案
CanvasGradient 渐变方案

window.onload = function () {
  function initCanvasDom(id) {
    const canvasDom = document.getElementById(id);
    canvasDom.width = 500;
    canvasDom.height = 500;
    return canvasDom;
  }

  const canvasDom = initCanvasDom("app");
  const ctx = canvasDom.getContext("2d");

  // 创建一个线性渐变 createLinearGradient(x1, y1, x2, y2)
  // x1, y1 和 x2, y2 的坐标可以构成一条线, 这线就是渐变的方向
  // 渐变起点: x1=10  y1=10
  // 渐变终点: x2=110 y2=10
  // 为什么是 10, 20, 110, 20 因为渐变方案从 0 开始计算
  // 因为矩形起始点离左边有 10 像素所以需要 矩形宽度 + 10
  // const gradient = ctx.createLinearGradient(10, 20, 110, 20); // 从左到右渐变
  const gradient = ctx.createLinearGradient(10, 20, 110, 120); // 从左上到右下渐变

  // 添加色标: addColorStop(progress, color)
  // progress 是一个值在 0-1 表示渐变进度
  // color    颜色
  gradient.addColorStop(0, "#f00");
  gradient.addColorStop(0.5, "#0f0");
  gradient.addColorStop(1, "#00f");

  // 填充矩形
  ctx.fillStyle = gradient;
  ctx.fillRect(10, 20, 100, 100);
};

绘制圆弧

基础知识了解

角度: 一个圆 360 度(角度), 一个半圆是 180 度
弧度: 一个圆 π, 一个半圆是 π/2

角度转弧度公式:
  因为: 180角度 = π 弧度
  所以: 1角度 = π/180
  所以: 弧度 = 角度 * π/180
        90角度 * π/180 = π/2

弧度转角度
  因为: π 弧度 = 180角度
  所以: 1 弧度 = 180/π
  所以: 角度 = 弧度 * 180/π
       π/2 * 180/π = 90 角度

绘制圆形

window.onload = function () {
  function initCanvasDom(id) {
    const canvasDom = document.getElementById(id);
    canvasDom.width = 500;
    canvasDom.height = 500;
    return canvasDom;
  }

  const canvasDom = initCanvasDom("app");
  const ctx = canvasDom.getContext("2d");

  // ctx.arc(x, y, round, startAngle, endAngle, isCounterclockwise);
  // x,y:        圆心坐标
  // round:      半径
  // startAngle: 起始角度
  // endAngle:   结束角度
  // isCounterclockwise: 是否是逆时针方向绘制, 默认false(顺时针方向)

  ctx.arc(100, 100, 50, 0, Math.PI, false);
  ctx.strokeStyle = "#f00";
  ctx.stroke();

  // 两个半圆, 一个逆时针, 一个顺时针, 组合成一个圆
  ctx.beginPath();
  ctx.arc(100, 100, 50, 0, Math.PI, true);
  ctx.strokeStyle = "#0f0";
  ctx.stroke();

  // 直接绘制一个圆形
  ctx.beginPath();
  ctx.arc(200, 200, 50, 0, Math.PI * 2);
  ctx.strokeStyle = "#00f";
  ctx.stroke();
};

绘制扇形

所谓扇形, 起始就是四分之一的圆形

window.onload = function () {
  function initCanvasDom(id) {
    const canvasDom = document.getElementById(id);
    canvasDom.width = 500;
    canvasDom.height = 500;
    return canvasDom;
  }

  const canvasDom = initCanvasDom("app");
  const ctx = canvasDom.getContext("2d");

  ctx.moveTo(200, 200); // 设置起点为圆心的坐标点
  ctx.arc(200, 200, 50, 0, Math.PI / 2);
  ctx.strokeStyle = "#00f";
  ctx.closePath(); // 直接闭合路径
  ctx.stroke();

  // 第二个逆时针扇形:从360°(2π)到270°(3π/2), 逆时针绘制90°扇形
  ctx.beginPath();
  ctx.moveTo(200, 200);
  ctx.arc(200, 200, 50, Math.PI * 2, (Math.PI * 3) / 2, true);
  ctx.closePath(); // 回到圆心，形成扇形区域
  ctx.strokeStyle = "#0f0";
  ctx.stroke();
};

绘制饼状图

所谓的饼状图起始就是多个扇形组合而成, 仅此而已

window.onload = function () {
  function initCanvasDom(id) {
    const canvasDom = document.getElementById(id);
    canvasDom.width = 500;
    canvasDom.height = 500;
    return canvasDom;
  }

  const canvasDom = initCanvasDom("app");
  const ctx = canvasDom.getContext("2d");

  // 设定圆心的位置为画布的正中间
  const rx = Math.floor(ctx.canvas.width / 2);
  const ry = Math.floor(ctx.canvas.height / 2);

  /*
  // 4 等分圆形
  // 0-90
  ctx.moveTo(rx, ry);
  ctx.arc(rx, ry, 100, 0, Math.PI / 2);
  ctx.fillStyle = "#f00";
  ctx.fill();

  // 90-180
  ctx.beginPath()
  ctx.moveTo(rx, ry);
  ctx.arc(rx, ry, 100, Math.PI / 2, Math.PI);
  ctx.fillStyle = "#0f0";
  ctx.fill();

  // 180-270
  ctx.beginPath()
  ctx.moveTo(rx, ry);
  ctx.arc(rx, ry, 100, Math.PI, Math.PI + Math.PI / 2);
  ctx.fillStyle = "#00f";
  ctx.fill();

  // 270-360
  ctx.beginPath()
  ctx.moveTo(rx, ry);
  ctx.arc(rx, ry, 100, Math.PI + Math.PI / 2, Math.PI * 2);
  ctx.fillStyle = "#ff0";
  ctx.fill();
  */

  function randomColor() {
    return `#${Math.floor(Math.random() * 0xffffff).toString(16)}`;
  }

  let startAngle = 0;
  for (let i = 1; i <= 4; i++) {
    const endAngle = (i * Math.PI) / 2;
    ctx.beginPath();
    ctx.moveTo(rx, ry);
    ctx.arc(rx, ry, 100, startAngle, endAngle);
    ctx.fillStyle = randomColor();
    ctx.fill();
    ctx.closePath();
    startAngle = endAngle;
  }
};

绘制文字

window.onload = function () {
  function initCanvasDom(id) {
    const canvasDom = document.getElementById(id);
    canvasDom.width = 500;
    canvasDom.height = 500;
    return canvasDom;
  }

  const canvasDom = initCanvasDom("app");

  /** @type {CanvasRenderingContext2D} */
  const ctx = canvasDom.getContext("2d");

  const { width, height } = ctx.canvas;
  const halfWidth = Math.floor(width / 2);
  const halfHeight = Math.floor(height / 2);

  // 参考坐标线
  ctx.moveTo(halfWidth, halfHeight);
  ctx.lineTo(0, halfHeight);
  ctx.lineTo(width, halfHeight);
  ctx.moveTo(halfWidth, halfHeight);
  ctx.lineTo(halfWidth, 0);
  ctx.lineTo(halfWidth, height);
  ctx.stroke();

  // 绘制矩形: 以矩形的左上角作为参考坐标
  // 绘制文字: 以文字的左下角作为参考坐标
  ctx.fillStyle = "#f00";
  ctx.fillRect(halfWidth, halfHeight, 100, 100);

  // 设置文字的大小和样式
  ctx.font = "30px 微软雅黑";

  // 设置文字垂直方向的对齐方式, 以绘制文字的 Y 坐标作为参考点
  ctx.textBaseline = "bottom"; // top/bottom/middle/alphabetic/ideographic

  // 设置文字水平方向的对齐方式, 以绘制文字的 X 坐标作为参考点
  ctx.textAlign = "left"; // start/center　/end/left/right

  // 文字描边
  // ctx.strokeText("hello world", halfWidth, halfHeight);

  // 填充文字(实心的)
  ctx.fillText("hello world", halfWidth, halfHeight);
};

text

绘制图片

window.onload = function () {
  function initCanvasDom(id) {
    const canvasDom = document.getElementById(id);
    canvasDom.width = 600;
    canvasDom.height = 600;
    return canvasDom;
  }

  const canvasDom = initCanvasDom("app");

  /** @type {CanvasRenderingContext2D} */
  const ctx = canvasDom.getContext("2d");

  const img = new Image();
  img.onload = function () {
    // 如果只有 3 个参数: drawImage(img, x, y)
    // img: 是需要绘制的 图片
    // x,y: 后面两个参数就是设置图片开始绘制的位置(图片左上角)
    // ctx.drawImage(img, 10, 10);

    // 如果只有 5 个参数: drawImage(img, x, y, w, h)
    // img: 是需要绘制的 图片
    // x,y: 设置图片开始绘制的位置(图片左上角)
    // w,h: 设置绘制的图片的宽度/高度(会拉伸)
    // ctx.drawImage(img, 10, 10, 300, 100);

    // 如果有 9 个参数: drawImage(img, imgX1, imgY1, imgX2, imgY2, x, y, w, h)
    // img: 是需要绘制的图片(被截取后的图片)
    // imgX1,imgY1: 以原图片的左上角作为参考, 设置截取的开始位置
    // imgX2,imgY2: 以原图片的左上角作为参考, 设置截取的结束位置
    // x,y: 设置图片开始绘制的位置(图片左上角)
    // w,h: 设置绘制的图片的宽度/高度(会拉伸)
    ctx.drawImage(img, 10, 10, 150, 150, 100, 100, 120, 120);
  };
  img.src = "https://raw.githubusercontent.com/liaohui5/images/refs/heads/main/images/20220420132604.png";
};

draw-image

形变

canvas 中与 css 的形变不同, canvas 中所有的形变操作, 都是针对坐标系, 而不是绘制的图形

window.onload = function () {
  function initCanvasDom(id) {
    const canvasDom = document.getElementById(id);
    canvasDom.width = 600;
    canvasDom.height = 600;
    return canvasDom;
  }

  const canvasDom = initCanvasDom("app");

  /** @type {CanvasRenderingContext2D} */
  const ctx = canvasDom.getContext("2d");

  // 整个坐标系向 x,y 移动 100, 而不是绘制的矩形移动
  ctx.translate(100, 100);

  ctx.fillStyle = "#f00";
  ctx.fillRect(50, 50, 100, 100);
  ctx.fillRect(0, 0, 10, 10);

  // 如果注释上面的 ctx.translate, 把形变的操作放到
  // 绘制图形的后面, 就会发现矩形并不会移动
  // ctx.translate(100, 100);
};

translate

合成模式

globalCompositeOperation

在 canvas 中, 不像 DOM 那样有 z-index 层的概念, 当在 canvas 上绘制图形、图像或文本时，这些新内容不会总是简单地 覆盖 已有内容

globalCompositeOperation 决定了新绘制的像素(称为源 source) 和 canvas 上已经存在的像素(称为目标 destination) 之间如何组合最终决定显示什么颜色

window.onload = function () {
  function initCanvasDom() {
    const canvasDom = document.getElementById("canvas");
    canvasDom.width = window.innerWidth;
    canvasDom.height = window.innerHeight;
    return canvasDom;
  }

  const canvasDom = initCanvasDom();

  /** @type {CanvasRenderingContext2D} */
  const ctx = canvasDom.getContext("2d");
  // 注: 所谓隐藏其实就是像素是透明的
  // 这个属性取值非常多, 但是日常开发中, 有这10个基本可以搞定了
  // 如果搞不定, 具体可以查看 mdn 文档, 有更详细的解读例子

  // 两个矩形重叠的区域显示绿色(说明重叠区显示后绘制的颜色)
  // ctx.globalCompositeOperation = "source-over"; // 默认值

  // 两个矩形重叠的区域显示红色矩形(说明重叠区域显示先绘制的颜色)
  // ctx.globalCompositeOperation = "destination-over";

  // 红色矩形:全部隐藏 绿色矩形:两个矩形重叠的区域隐藏,不重叠的区域显示
  // ctx.globalCompositeOperation = "source-out";

  // 将两个矩形重叠区域的颜色进行混合(红+绿=黄)
  // ctx.globalCompositeOperation = "lighter";

  // 红色矩形:全部隐藏 绿色矩形:全部显示(也就是说仅显示后绘制的矩形)
  // ctx.globalCompositeOperation = "copy";

  // 将两个矩形重叠的区域隐藏
  // ctx.globalCompositeOperation = "xor";

  // 将两个矩形重叠的区域颜色变黑
  // ctx.globalCompositeOperation = "multiply";

  // 将两个矩形重叠的区域颜色变亮(效果类似 lighter)
  // ctx.globalCompositeOperation = "screen";

  // 保留了底层的亮度, 同时采用了顶层的色调和色度: 混合两个矩形重叠区域的颜色
  // ctx.globalCompositeOperation = "color";

  // 保持底层的色调和色度, 同时采用顶层的亮度
  // ctx.globalCompositeOperation = "luminosity";

  // 红色矩形 destination
  ctx.fillStyle = "#f00";
  ctx.fillRect(100, 100, 100, 100);

  // 绿色矩形 source
  ctx.fillStyle = "#0f0";
  ctx.fillRect(150, 150, 100, 100);

  // destination
  ctx.fillStyle = "#383838";
  ctx.fillRect(400, 100, 100, 100);

  // source
  ctx.fillStyle = "#ff0000";
  ctx.fillRect(450, 150, 100, 100);
};

图形交互

默认情况下, JS 无法和 canvas 内绘制的图形进行交互, 但是可以用事件触发的位置和 canvas 绘制的图形的位置去判断, 是否点击了绘制的图形

window.onload = function () {
  function initCanvasDom(id) {
    const canvasDom = document.getElementById(id);
    canvasDom.width = 600;
    canvasDom.height = 600;
    return canvasDom;
  }

  const canvasDom = initCanvasDom("app");

  /** @type {CanvasRenderingContext2D} */
  const ctx = canvasDom.getContext("2d");

  // rect1
  const rect = {
    x: 50,
    y: 50,
    width: 100,
    height: 100,
  };
  ctx.fillStyle = "#f00";
  ctx.rect(rect.x, rect.y, rect.width, rect.height);
  ctx.fill();

  // rect2
  // ctx.beginPath();
  ctx.rect(200, 200, 100, 100);
  ctx.fill();

  ctx.canvas.addEventListener("click", (e) => {
    // 手动判断位置
    const { offsetX, offsetY } = e;
    // const maxRectX = rect.x + rect.width;
    // const maxRectY = rect.y + rect.height;
    // if (offsetX >= rect.x && offsetX <= maxRectX && offsetY >= rect.y && offsetY <= maxRectY) {
    //   console.log("inside the rect");
    // } else {
    //   console.log("outside");
    // }

    // 使用 isPointInPath 方法判断:
    // 注意: 默认情况下, rect1 rect2 都会返回 true
    // 但是如果绘制 rect2 时, 开启了新路径 ctx.beginPath()
    // 那么就只有点击 rect2 会返回 true, rect1 会返回 false
    if (ctx.isPointInPath(offsetX, offsetY)) {
      console.log("inside the rect");
    } else {
      console.log("outside");
    }
  });
};

使用 HTMLCanvasElement 实例方法压缩图片体积

这个类除了 getContext 方法外, 还有一个 toBlob 方法比较常用:

toBlob 将 HTMLCanvasElement 对象转为一个 Blob 对象

jshtml

window.onload = function () {
  const inputDom = document.getElementById("fileInput");
  inputDom.addEventListener("change", async (e) => {
    const [file] = e.target.files;
    const blob = await compressImageAsync(file);

    // upload blob ...
    console.log("blob", blob);
  });

  // 压缩图片
  function compressImageAsync(file, quality = 0.5, imageType = "image/png") {
    return new Promise((resolve, reject) => {
      const url = URL.createObjectURL(file);
      const image = new Image();
      image.src = url;
      image.onerror = () => reject("compressImageAsync: failed to load image");
      image.onload = function () {
        const canvasDom = document.createElement("canvas");

        // 这里只是压缩但是并不缩放, 如果需要也可以等比例缩放 canvas 宽高
        canvasDom.width = image.width;
        canvasDom.height = image.height;

        /** @type {CanvasRenderingContext2D} */
        const ctx = canvasDom.getContext("2d");
        ctx.drawImage(image, 0, 0); // 将图片画到 canvas 上

        // 第一个参数是压缩完后的回调函数, 压缩后的 blob 是参数
        // 第二个参数是压缩后图片的文件类型 jpg/png
        // 第三个参数是压缩的质量取值是 0~1 数值越低, 图片越模糊
        canvasDom.toBlob(resolve, imageType, quality);
      };
    });
  }
};

html

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>Canvas Demo</title>
    <style>
      * {
        margin: 0;
        padding: 0;
      }
      body {
        width: 100vw;
        height: 100vh;
        overflow: hidden;
      }
    </style>
  </head>
  <body>
    <input type="file" id="fileInput" />
    <script type="module" src="./index.js"></script>
  </body>
</html>

Canvas 练习

画板工具

preview

index.htmlindex.jsstack.js

html

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>canvas draw board</title>
    <style>
      * {
        margin: 0;
        padding: 0;
      }
      body {
        width: 100vw;
        height: 100vh;
        overflow: hidden;
      }
      .tool-bar {
        width: 100%;
        padding: 10px 20px;
        position: fixed;
        top: 0;
        left: 0;
        z-index: 10;
        background: #f8f8f8;
        border-bottom: 1px solid #eee;
        display: flex;
      }
      .tool-bar .item {
        display: inline-flex;
        align-items: center;
        margin-right: 20px;
      }
      .tool-bar .item .label {
        margin-right: 10px;
      }
      .tool-bar .item .status {
        justify-self: flex-end;
      }
    </style>
  </head>
  <body>
    <div class="tool-bar">
      <div class="item">
        <span class="label">选择颜色</span>
        <input type="color" id="colorPicker" />
      </div>
      <div class="item">
        <span class="label">笔画粗细</span>
        <input type="range" id="lineWidthPicker" min="1" max="20" />
      </div>
      <div class="item">
        <button id="clearButton" class="label">清除画布</button>
      </div>
      <div class="item">
        <button id="eraserButton" class="label">橡皮擦</button>
      </div>
      <div class="item">
        <button id="penButton" class="label">画笔</button>
      </div>
      <div class="item">
        <button id="undoButton" class="label">撤销</button>
      </div>
      <div class="item">
        <button id="redoButton" class="label">恢复</button>
      </div>
      <div class="item status">
        <span class="label" id="statusBar"></span>
      </div>
    </div>
    <script type="module" src="./index.js"></script>
  </body>
</html>

import Stack from "./stack.js";

/** @type {CanvasRenderingContext2D} */
let canvas2dContext = null;

const PEN_TYPES = {
  PEN: {
    id: "PEN",
    label: "画笔",
  },
  ERASER: {
    id: "ERASER",
    label: "橡皮擦",
  },
};

const state = {
  // 鼠标按下时的位置
  mouseDownPos: {
    x: 0,
    y: 0,
  },
  lineCap: "round", // 画笔线条端点样式
  lineWidth: 10, // 当前画笔宽度
  pen: PEN_TYPES.PEN, // "画笔" or "橡皮擦"
  penColor: "#000000", // 当前画笔颜色
  cachePenColor: null, // 缓存的画笔颜色(切换到橡皮擦时使用)
  backgroundColor: "#FFFFFF", // 画布背景色(橡皮擦颜色)
  drawStack: new Stack(), // 绘制操作栈
  undoStack: new Stack(), // 撤销操作栈
  getOptions() {
    // 获取当前画笔配置
    return {
      penColor: this.penColor,
      lineCap: this.lineCap,
      lineWidth: this.lineWidth,
    };
  },
  setPenColor(color) {
    this.penColor = color;
    syncCanvasOptions(canvas2dContext, this.getOptions());
  },
  clearCachePenColor() {
    this.cachePenColor = null;
  },
  setCachePenColor(color) {
    this.cachePenColor = color;
  },
  setLineWidth(width) {
    this.lineWidth = width;
    syncCanvasOptions(canvas2dContext, this.getOptions());
  },
  setMouseDownPos(pos) {
    this.mouseDownPos = pos;
  },
  getPenLabel() {
    return `当前工具:${this.pen.label}`;
  },
  setPen() {
    this.pen = PEN_TYPES.PEN;
    this.setPenColor(this.cachePenColor); // restore pen color
    this.clearCachePenColor(); // clear cache
    initStatusBar();
  },
  setEraser() {
    this.pen = PEN_TYPES.ERASER;
    this.setCachePenColor(this.penColor); // cache current pen color
    this.setPenColor(this.backgroundColor); // set pen color to background color
    initStatusBar();
  },
  clearStacks() {
    this.drawStack.clear();
    this.undoStack.clear();
  },
  createDrawRecord() {
    this.drawStack.push({
      id: Math.random().toString(36).substring(2, 10),
      moveTo: [],
      lineTo: [],
      options: this.getOptions(),
    });
  },
  setLastRecordMoveTo(pos) {
    const lastRecord = this.drawStack.peek();
    lastRecord.moveTo = pos;
  },
  setLastRecordLineTo(pos) {
    const lastRecord = this.drawStack.peek();
    lastRecord.lineTo.push(pos);
  },
};

window.onload = init;

function init() {
  initCanvas();
  syncCanvasOptions(canvas2dContext, state.getOptions()); // initial sync
  initColorPicker();
  initLineWidthPicker();
  initClearButton();
  initEraserButton();
  initPenButton();
  initUndoButton();
  initRedoButton();
  initStatusBar();
}

function initCanvas() {
  const canvasDom = document.createElement("canvas");
  const ctx = canvasDom.getContext("2d");
  canvas2dContext = ctx; // global variable assignment
  canvasDom.width = window.innerWidth;
  canvasDom.height = window.innerHeight;
  canvasDom.addEventListener("mousedown", handleMouseDown, false);
  document.body.appendChild(canvasDom);
}

function initColorPicker() {
  const colorPickerDom = document.getElementById("colorPicker");
  if (!colorPickerDom) return;
  colorPickerDom.addEventListener("input", (e) => {
    state.setPenColor(e.target.value);
  });
  colorPickerDom.value = state.penColor; // initialize color
}

function initLineWidthPicker() {
  const lineWidthPickerDom = document.getElementById("lineWidthPicker");
  if (!lineWidthPickerDom) return;
  lineWidthPickerDom.addEventListener("change", (e) => {
    state.setLineWidth(parseInt(e.target.value));
  });
  lineWidthPickerDom.value = state.lineWidth; // initialize picker value
}

function initClearButton() {
  const clearButtonDom = document.getElementById("clearButton");
  if (!clearButtonDom) return;
  clearButtonDom.addEventListener("click", clearAll, false);
}

function initEraserButton() {
  const eraserButtonDom = document.getElementById("eraserButton");
  if (!eraserButtonDom) return;
  eraserButtonDom.addEventListener("click", () => state.setEraser(), false);
}
function initPenButton() {
  const penButtonDom = document.getElementById("penButton");
  if (!penButtonDom) return;
  penButtonDom.addEventListener("click", () => state.setPen(), false);
}

function initStatusBar() {
  const statusBarDom = document.getElementById("statusBar");
  if (!statusBarDom) return;
  statusBarDom.innerText = state.getPenLabel();
}

function initUndoButton() {
  const undoButtonDom = document.getElementById("undoButton");
  if (!undoButtonDom) return;
  undoButtonDom.addEventListener("click", undo, false);
}

function initRedoButton() {
  const redoButtonDom = document.getElementById("redoButton");
  if (!redoButtonDom) return;
  redoButtonDom.addEventListener("click", redo, false);
}

function syncCanvasOptions(ctx, options) {
  const { penColor, lineCap, lineWidth } = options;
  ctx.strokeStyle = penColor;
  ctx.fillStyle = penColor;
  ctx.lineCap = lineCap;
  ctx.lineWidth = lineWidth;
}

function handleMouseDown(e) {
  const { clientX, clientY } = e;

  state.setMouseDownPos({
    x: clientX,
    y: clientY,
  });
  drawPoint(clientX, clientY);

  const canvasDom = canvas2dContext.canvas;
  canvasDom.addEventListener("mousemove", handleMouseMove, false);
  canvasDom.addEventListener("mouseup", handleMouseUp, false);
}

function handleMouseMove(e) {
  const { clientX: x2, clientY: y2 } = e;
  const { x: x1, y: y1 } = state.mouseDownPos;
  drawLine({ x1, y1, x2, y2 });
}

function handleMouseUp(_e) {
  const canvasDom = canvas2dContext.canvas;
  canvasDom.removeEventListener("mousemove", handleMouseMove, false);
  canvasDom.removeEventListener("mouseup", handleMouseUp, false);
}

function drawPoint(x, y) {
  state.createDrawRecord();
  state.setLastRecordMoveTo([x, y]);
  $drawPoint(x, y);
}

function drawLine({ x1, y1, x2, y2 }) {
  state.setLastRecordLineTo([x1, y1, x2, y2]);
  canvas2dContext.beginPath();
  canvas2dContext.moveTo(x1, y1);
  canvas2dContext.lineTo(x2, y2);
  canvas2dContext.stroke();
  state.setMouseDownPos({ x: x2, y: y2 });
}

function $drawPoint(x, y) {
  canvas2dContext.beginPath();
  canvas2dContext.arc(x, y, canvas2dContext.lineWidth / 2, 0, Math.PI * 2);
  canvas2dContext.fill();
}

function clearAll() {
  const canvasDom = canvas2dContext.canvas;
  canvas2dContext.clearRect(0, 0, canvasDom.width, canvasDom.height);
}

function drawLineBatch(lines) {
  canvas2dContext.beginPath();
  for (const line of lines) {
    const [x1, y1, x2, y2] = line;
    canvas2dContext.moveTo(x1, y1);
    canvas2dContext.lineTo(x2, y2);
  }
  canvas2dContext.stroke();
}

function redraw() {
  clearAll();
  for (const record of state.drawStack.items) {
    const { moveTo, lineTo, options } = record;
    // sync options for each record
    syncCanvasOptions(canvas2dContext, options);
    $drawPoint(moveTo[0], moveTo[1]);
    drawLineBatch(lineTo);
  }

  // restore current options
  syncCanvasOptions(canvas2dContext, state.getOptions());
}

function undo() {
  if (state.drawStack.isEmpty()) {
    console.log("drawStack is empty, cannot undo");
    return;
  }
  const record = state.drawStack.pop();
  state.undoStack.push(record);

  console.log("poped record:", record);
  console.log("drawStack:", state.drawStack.items);
  console.log("undoStack:", state.undoStack.items);
  redraw();
}

function redo() {
  if (state.undoStack.isEmpty()) {
    console.log("undoStack is empty, cannot redo");
    return;
  }
  const record = state.undoStack.pop();
  state.drawStack.push(record);

  console.log("poped record:", record);
  console.log("drawStack:", state.drawStack.items);
  console.log("undoStack:", state.undoStack.items);
  redraw();
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281

/**
 * 栈是一种受限的线性数据结构,相较于数组来说只能后进先出
 */
export default class Stack {
  items = [];

  /**
   * 获取栈的总长度
   * @returns number
   */
  size() {
    return this.items.length;
  }

  /**
   * 栈是否为空
   * @returns boolean
   */
  isEmpty() {
    return this.size() === 0;
  }

  /**
   * 出栈
   * @returns T | undefined
   */
  pop() {
    return this.items.pop();
  }

  /**
   * 入栈
   * @param item
   */
  push(item) {
    this.items.push(item);
  }

  /**
   * 查看栈顶元素(但是不会执行出栈操作)
   * @returns T | undefined
   */
  peek() {
    return this.items[this.items.length - 1];
  }

  /**
   * 清栈
   */
  clear() {
    this.items = [];
  }

  /**
   * 字符串序列化
   * @returns string
   */
  toString() {
    return "[" + this.items.toString() + "]";
  }
}

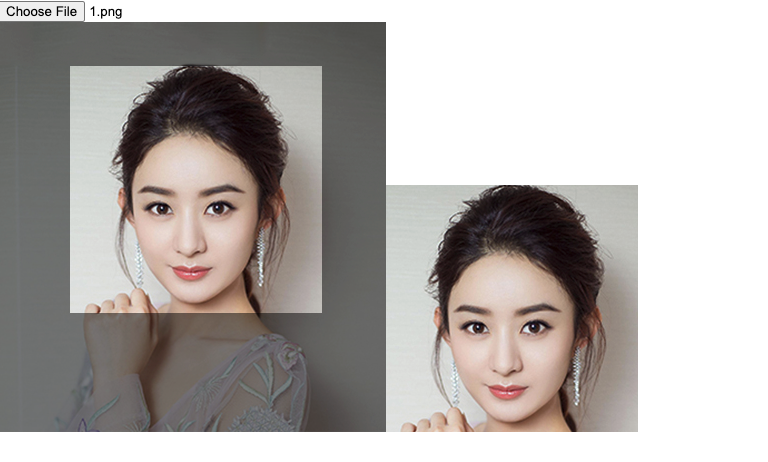

实现截图功能

screen-shot

jshtml

/** @type {CanvasRenderingContext2D} */
let canvas2dContext;

const state = {
  // 通过文件选择框选中的文件对应的图片元素
  imageElement: null,
  width: 0,
  height: 0,
  setImageElement(dom) {
    this.width = dom.width;
    this.height = dom.height;
    this.imageElement = dom;
  },
  getImageElement() {
    return this.imageElement;
  },

  // 获取图片尺寸
  getImageSize() {
    const { width, height } = this;
    return { width, height };
  },

  // 鼠标按下时的坐标
  canvasMouseDownPos: {
    x: 0,
    y: 0,
  },
  setCanvasMouseDownPos(x, y) {
    this.canvasMouseDownPos = {
      x,
      y,
    };
  },

  // 截屏选取区域的坐标
  screenShotPos: [0, 0, 0, 0],
  setScreenShotPos(data) {
    this.screenShotPos = data;
  },
  getScreenShotPos() {
    return this.screenShotPos;
  },
};

// init
window.onload = function init() {
  initFileInput();
};

function initFileInput() {
  const fileInputDom = document.getElementById("fileInput");
  fileInputDom.addEventListener("change", (e) => {
    loadImage(e.target.files[0]);
  });
}

function loadImage(file) {
  const url = URL.createObjectURL(file);
  const image = new Image();
  image.onload = function () {
    // 图片加载完之后, 将图片元素的信息保存到 state
    // 然后初始化 canvas, 将图片/遮罩画出来
    // 最后 revokeObjectURL
    state.setImageElement(image);
    initCanvas();
    drawImage();
    drawImageMask();
    URL.revokeObjectURL(url);
  };
  image.src = url;
}

function initCanvas() {
  const canvasDom = document.createElement("canvas");
  const ctx = canvasDom.getContext("2d");
  canvas2dContext = ctx;
  const { width, height } = state.getImageSize();
  canvasDom.width = width;
  canvasDom.height = height;
  canvas2dContext.canvas.addEventListener("mousedown", handleCanvasMouseDown, false);
  document.body.appendChild(canvasDom);
}

function drawImage() {
  const image = state.getImageElement();
  canvas2dContext.drawImage(image, 0, 0);
}

function drawImageMask(opacity = 0.5) {
  const { width, height } = canvas2dContext.canvas;
  canvas2dContext.fillStyle = `rgba(0,0,0,${opacity})`;
  canvas2dContext.fillRect(0, 0, width, height);
}

function handleCanvasMouseDown(e) {
  state.setCanvasMouseDownPos(e.offsetX, e.offsetY);
  canvas2dContext.canvas.addEventListener("mousemove", handleCanvasMouseMove, false);
}

function handleCanvasMouseMove(e) {
  canvas2dContext.canvas.addEventListener("mouseup", handleCanvasMouseUp, false);
  const { offsetX, offsetY } = e;
  const { x, y } = state.canvasMouseDownPos;
  const rectWidth = offsetX - x;
  const rectHeight = offsetY - y;
  const { width, height } = state.getImageSize();

  // 保存截取区域的4个坐标 x1,y1 x2,y2
  state.setScreenShotPos([x, y, rectWidth, rectHeight]);

  // 清除画布
  canvas2dContext.clearRect(0, 0, width, height);

  // 重新绘制 mask 和 截取选中部分
  drawImageMask();
  drawScreenShot(rectWidth, rectHeight);
}

function handleCanvasMouseUp() {
  drawScreenShotImage();
  canvas2dContext.canvas.removeEventListener("mousedown", handleCanvasMouseDown, false);
  canvas2dContext.canvas.removeEventListener("mousemove", handleCanvasMouseMove, false);
}

function drawScreenShot(rectWidth, rectHeight) {
  // globalCompositeOperation docs:
  // https://developer.mozilla.org/zh-CN/docs/Web/API/CanvasRenderingContext2D/globalCompositeOperation
  // 仅保留现有画布内容和新形状不重叠的部分
  canvas2dContext.globalCompositeOperation = "destination-out";
  canvas2dContext.fillStyle = "#000";

  const { x, y } = state.canvasMouseDownPos;
  canvas2dContext.fillRect(x, y, rectWidth, rectHeight);

  // 在现有画布内容的后面绘制新的图形
  canvas2dContext.globalCompositeOperation = "destination-over";
  drawImage();
}

function drawScreenShotImage() {
  const screenShotPos = state.getScreenShotPos();
  const imageData = canvas2dContext.getImageData(...screenShotPos);
  const [_x1, _y1, w, h] = screenShotPos;
  createPreview(w, h, imageData);
}

function createPreview(width, height, imageData) {
  const canvasDom = document.createElement("canvas");
  canvasDom.width = width;
  canvasDom.height = height;
  const ctx = canvasDom.getContext("2d");
  ctx.putImageData(imageData, 0, 0);
  document.body.appendChild(canvasDom);
}

html

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>Canvas Demo</title>
    <style>
      * {
        margin: 0;
        padding: 0;
      }
      body {
        width: 100vw;
        height: 100vh;
      }
    </style>
  </head>
  <body>
    <div>
      <input type="file" id="fileInput" accept="image/*" />
    </div>
    <script type="module" src="./index.js"></script>
  </body>
</html>

刮刮乐刮奖效果

guaguale

其实就是默认给元素加一个默认的遮罩,然后将设置 globalCompositeOperation=destination-out 那么用鼠标划过的位置就会透明, 那么底下的元素就会展示出来, 那么就得到了类似刮奖的效果

htmljs

html

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>Canvas Demo</title>
    <style>
      * {
        margin: 0;
        padding: 0;
      }
      body {
        width: 100vw;
        height: 100vh;
        overflow: hidden;
      }
      .container {
        width: 400px;
        height: 200px;
        position: relative;
      }
      .container #mask,
      .container #anwser {
        position: absolute;
        top: 0;
        left: 0;
      }
      #anwser {
        z-index: 1;
      }
      #mask {
        z-index: 2;
      }
    </style>
  </head>
  <body>
    <div class="container">
      <canvas id="mask"></canvas>
      <canvas id="anwser"></canvas>
    </div>
    <script type="module" src="./index.js"></script>
  </body>
</html>

// global states
const state = {
  width: 400,
  height: 200,
  isOpenable: false,
  setIsOpening(value) {
    this.isOpenable = value;
  },
};

function initAnwser() {
  const { width, height } = state;
  const anwserDom = document.getElementById("anwser");
  anwserDom.width = width;
  anwserDom.height = height;

  /** @type {CanvasRenderingContext2D} */
  const ctx = anwserDom.getContext("2d");
  const text = Math.random() > 0.5 ? "再来一瓶" : "谢谢惠顾";
  ctx.fillStyle = "#f00";
  ctx.font = "32px '微软雅黑'";
  ctx.textAlign = "center";
  ctx.fillText(text, width / 2, height / 2);
}

function initMask() {
  const { width, height } = state;
  const maskDom = document.getElementById("mask");
  maskDom.width = width;
  maskDom.height = height;

  /** @type {CanvasRenderingContext2D} */
  const ctx = maskDom.getContext("2d");

  // draw mask
  ctx.fillStyle = "#ccc";
  ctx.fillRect(0, 0, 400, 200);

  // bind events
  maskDom.addEventListener("mousedown", () => {
    state.setIsOpening(true);
  });
  maskDom.addEventListener("mousemove", (e) => {
    if (!state.isOpenable) {
      return;
    }
    // 设置这个属性后, 后续画的路径会让canvas透明
    ctx.globalCompositeOperation = "destination-out";

    const { offsetX, offsetY } = e;
    ctx.arc(offsetX, offsetY, 20, 0, Math.PI * 2);
    ctx.fill();
  });
  maskDom.addEventListener("mouseup", () => {
    state.setIsOpening(false);
  });
}

window.onload = function () {
  initAnwser();
  initMask();
};

弹幕效果

danmu

index.htmlstyles.cssindex.jsVideoDanmu.js

html

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>Canvas Demo</title>
    <link rel="stylesheet" href="./style.css" />
  </head>
  <body>
    <div class="container">
      <ul class="tool-bar">
        <li class="tool-bar-item">
          <span>弹幕颜色</span>
          <input type="color" id="danmu-color" value="#f8f8f8" />
        </li>
        <li class="tool-bar-item">
          <span>字体大小</span>
          <input type="range" id="danmu-size" min="15" max="25" step="1" value="20" />
        </li>
        <li class="tool-bar-item">
          <span>弹幕速度</span>
          <select id="danmu-speed">
            <option value="1">慢</option>
            <option selected="selected" value="2">默认</option>
            <option value="4">快</option>
          </select>
        </li>
        <li class="tool-bar-item">
          <input type="text" id="danmu-text" />
          <button id="send-danmu">发送</button>
        </li>
      </ul>

      <div class="video-container">
        <video
          id="video"
          src="https://lf3-static.bytednsdoc.com/obj/eden-cn/nupenuvpxnuvo/xgplayer_doc/xgplayer-demo-720p.mp4"
          controls
        ></video>
      </div>
    </div>

    <script type="module" src="./index.js"></script>
  </body>
</html>

css

* {
  margin: 0;
  padding: 0;
}
body {
  width: 100vw;
  height: 100vh;
  overflow: hidden;
}
.container {
  padding: 20px;
  width: 1000px;
  margin: 0 auto;
}

.container .tool-bar {
  list-style: none;
  display: flex;
  align-items: center;
  gap: 15px;
  padding: 15px 20px;
  margin-bottom: 20px;
  background: linear-gradient(135deg, #667eea 0%, #764ba2 100%);
  border-radius: 10px;
  box-shadow: 0 8px 16px rgba(0, 0, 0, 0.15);
  flex-wrap: wrap;
}

.container .tool-bar li.tool-bar-item {
  list-style: none;
  display: inline-flex;
  align-items: center;
  gap: 8px;
  color: white;
  font-weight: 500;
}

.container .tool-bar span {
  font-size: 14px;
  min-width: 80px;
}

.container .tool-bar input[type="color"] {
  width: 40px;
  height: 40px;
  border: 2px solid white;
  border-radius: 6px;
  cursor: pointer;
  transition: transform 0.2s;
}

.container .tool-bar input[type="color"]:hover {
  transform: scale(1.1);
}

.container .tool-bar input[type="range"] {
  width: 120px;
  cursor: pointer;
  accent-color: #fff;
}

.container .tool-bar select,
.container .tool-bar input[type="text"],
.container .tool-bar button {
  padding: 8px 12px;
  border: 2px solid white;
  border-radius: 6px;
  font-size: 14px;
  background: rgba(255, 255, 255, 0.95);
  color: #333;
  cursor: pointer;
  transition: all 0.2s;
  font-weight: 500;
}

.container .tool-bar input[type="text"] {
  min-width: 150px;
}

.container .tool-bar select:hover,
.container .tool-bar input[type="text"]:hover {
  background: white;
  box-shadow: 0 4px 8px rgba(0, 0, 0, 0.1);
}

.container .tool-bar button {
  background: linear-gradient(135deg, #f093fb 0%, #f5576c 100%);
  color: white;
  border: none;
  min-width: 80px;
}

.container .tool-bar button:hover {
  box-shadow: 0 6px 12px rgba(245, 87, 108, 0.4);
  transform: translateY(-2px);
}

.container .tool-bar button:active {
  transform: translateY(0);
}

.container #video {
  width: 100%;
  border: 1px solid #ccc;
}

import { createVideoDanmu } from "./VideoDanmu.js";

window.onload = function init() {
  const danmuColorDom = document.getElementById("danmu-color");
  const danmuSizeDom = document.getElementById("danmu-size");
  const danmuSpeedDom = document.getElementById("danmu-speed");
  const danmuTextDom = document.getElementById("danmu-text");
  const danmuSendDom = document.getElementById("send-danmu");
  const videoDom = document.getElementById("video");

  const videoDanmuInst = createVideoDanmu(videoDom);
  videoDanmuInst.loadData([
    {
      text: "我太喜欢这首歌了",
      color: "#ff0000",
      fontSize: 20,
      speed: 2,
      showtime: 3,
    },
    {
      text: "你们好你们好你们好你们好你们好",
      color: "#00ff00",
      fontSize: 20,
      speed: 3,
      showtime: 6,
    },
    {
      text: "这首歌很好听",
      color: "#ffffff",
      fontSize: 20,
      speed: 1,
      showtime: 7,
    },
    {
      text: "我太喜欢这首歌了",
      color: "#ffffff",
      fontSize: 20,
      speed: 3,
      showtime: 8,
    },
    {
      text: "我太喜欢这首歌了2",
      color: "#ff0000",
      fontSize: 20,
      speed: 4,
      showtime: 10,
    },
    {
      text: "你们好你们好你们好你们好你们好2",
      color: "#00ff00",
      fontSize: 20,
      speed: 3,
      showtime: 12,
    },
    {
      text: "这首歌很好听222",
      color: "#ffffff",
      fontSize: 20,
      speed: 2,
      showtime: 14,
    },
    {
      text: "我太喜欢这首歌了222",
      color: "#ffffff",
      fontSize: 20,
      speed: 2,
      showtime: 15,
    },
  ]);

  videoDom.addEventListener("play", () => videoDanmuInst.play(), false);
  videoDom.addEventListener("pause", () => videoDanmuInst.pause(), false);
  danmuSendDom.addEventListener("click", () => {
    const text = danmuTextDom.value.trim();
    if (text.length === 0) {
      console.log("请输入弹幕内容");
      return;
    }
    if (text.length === 1) {
      console.log("不能发送单个字符");
      return;
    }
    const color = danmuColorDom.value;
    const fontSize = parseInt(danmuSizeDom.value);
    const speed = parseInt(danmuSpeedDom.value);
    const showtime = videoDom.currentTime;
    const danmu = {
      color,
      fontSize,
      speed,
      text,
      showtime,
    };
    videoDanmuInst.loadData([danmu]);
    danmuTextDom.value = "";
  });
};

export class VideoDanmu {
  /** @type {CanvasRenderingContext2D} */
  canvasContext = null;

  // 是否暂停弹幕
  isPaused = true;

  // 弹幕池数据
  danmuPool = [];

  // 默认弹幕样式配置
  styleOptions = {
    text: "",
    color: "#ff0000",
    speed: 6,
    fontSize: 30,
    fontFamily: "Hack",
  };

  // 可显示弹幕的区域份数(总视频高度 / 2 = 可显示弹幕高度)
  visibleAreaHeight = 2;

  constructor(videoDom, styleOpts = {}) {
    this.videoDom = videoDom;
    this.styleOptions = Object.assign(this.styleOptions, styleOpts);
    this.init();
    this.render();
  }

  init() {
    this.initConvas();
    this.initDom();
  }

  initConvas() {
    // 用于绘制弹幕
    const canvasDom = document.createElement("canvas");
    this.canvasContext = canvasDom.getContext("2d");

    // 用于计算弹幕宽度 4GTW: forGetTextWidth
    const canvasDom2 = document.createElement("canvas");
    this.canvasCtx4GTW = canvasDom2.getContext("2d");
  }

  initDom() {
    const container = document.createElement("div");
    const videoDom = this.videoDom;

    // container style
    container.style.position = "relative";
    container.width = videoDom.offsetWidth;
    container.height = videoDom.offsetHeight;

    // canvas style
    const canvasDom = this.canvasContext.canvas;
    canvasDom.width = videoDom.offsetWidth;
    canvasDom.height = videoDom.offsetHeight;
    canvasDom.style.position = "absolute";
    canvasDom.style.top = 0;
    canvasDom.style.left = 0;

    // append to dom tree
    const parentNode = videoDom.parentNode;
    container.append(canvasDom);
    container.append(videoDom);
    parentNode.append(container);
  }

  getVisibleAreaHeight() {
    return this.canvasContext.canvas.height / this.visibleAreaHeight;
  }

  setVisibleAreaHeight(n) {
    if (n < 1 || n > 5) {
      throw new Error("setVisibleAreaHeight: please give an number between 1 and 5");
    }
    this.visibleAreaHeight = n;
  }

  play() {
    this.isPaused = false;
    this.render();
  }

  pause() {
    this.isPaused = true;
  }

  loadData(data) {
    if (!Array.isArray(data)) {
      throw new Error("loadData: please give an array");
    }

    const danmus = data.map((item) => this.formatDanmu(item));
    this.danmuPool.push(...danmus);

    console.log("loadData:", danmus);
  }

  formatDanmu(item) {
    // {
    //   text: "",           // 弹幕内容
    //   color: "#ff0000", // 弹幕颜色
    //   speed: 2,           // 弹幕滚动速度
    //   showtime: 8,        // 弹幕展示时间
    //   fontSize: 20,       // 弹幕字体大小
    //   fontFamily:'Hack',  // 弹幕字体
    //   width:  ?           // 弹幕宽度
    //   x:      ?           // 弹幕起始 x 坐标
    //   y:      ?           // 弹幕起始 y 坐标
    //   isDone: false,      // 是否已经展示过了
    // }
    const danmu = Object.assign({}, this.styleOptions, item);
    const { text, fontSize, fontFamily } = danmu;
    const danmuWidth = this.getDanmuWidth(text, fontSize, fontFamily);

    // 计算起始位置: 默认在最右边
    // x: canvas宽度 + 弹幕本身的宽度
    // y: fontSize + canvas可显示弹幕区域随机
    // 弹幕起始位置放在画布右侧外，这样才会从右向左进入画面
    const startX = this.canvasContext.canvas.width + danmuWidth;
    const startY = random(fontSize, this.getVisibleAreaHeight() - fontSize);

    return Object.assign(danmu, {
      isDone: false,
      width: danmuWidth,
      x: startX,
      y: startY,
    });
  }

  // 获取弹幕的宽度
  getDanmuWidth(text, fontSize, fontFamily) {
    this.canvasCtx4GTW.font = `${fontSize}px ${fontFamily}`;
    const { width } = this.canvasCtx4GTW.measureText(text);
    return width;
  }

  drawDanmu(danmu) {
    // 只有 视频的播放时间大于等于弹幕的展示时间
    // 或者 弹幕还没有展示过, 此时: 才会绘制否则
    // 一次性绘制太多可能会导致卡顿
    if (!danmu.isDone && this.videoDom.currentTime < danmu.showtime) {
      return;
    }

    // 移动坐标, 不停往左移动
    danmu.x -= danmu.speed;

    // 绘制
    const { text, color, fontSize, x, y } = danmu;
    const ctx = this.canvasContext;
    ctx.shadowColor = "#000000";
    ctx.shadowBlur = 2;
    ctx.font = `${fontSize}px '${danmu.fontFamily}'`;
    ctx.fillStyle = color;
    ctx.fillText(text, x, y);

    // 如果已经移动到最左边了
    if (danmu.x <= -danmu.width) {
      danmu.isDone = true;
    }
  }

  renderDanmu() {
    const items = this.danmuPool;
    // console.log("renderDanmu count:", items.length);
    for (const danmu of items) {
      this.drawDanmu(danmu);
    }
  }

  removeDoneDanmu() {
    this.danmuPool = this.danmuPool.filter((item) => !item.isDone);
  }

  render() {
    this.clear();
    this.removeDoneDanmu();
    this.renderDanmu();
    !this.isPaused && requestAnimationFrame(() => this.render());
  }

  clear() {
    const { width, height } = this.canvasContext.canvas;
    this.canvasContext.clearRect(0, 0, width, height);
  }
}

/**
 * 返回指定范围内的随机数
 * @param min - 最小值
 * @param max - 最大值
 * @returns 返回值
 */
export function random(min, max) {
  return Math.floor(Math.random() * (max - min + 1) + min);
}

export const createVideoDanmu = (videoEl, options) => new VideoDanmu(videoEl, options);

五子棋游戏

five-chesses

index.jsindex.htmlstyles.css

window.addEventListener("DOMContentLoaded", () => {
  init();
});

/** @type {CanvasRenderingContext2D} */
let _canvas2dContext;
const setContext = (ctx) => {
  _canvas2dContext = ctx;
};
const getContext = () => _canvas2dContext;

// 棋子的类型
const CHESS_TYPE = {
  BLACK: {
    name: "黑棋",
    color: "#000",
    value: 0,
  },
  WHITE: {
    name: "白棋",
    color: "#fff",
    value: 1,
  },
};

// 全局的状态管理
const state = {
  width: 800, /////////// 棋盘总宽度
  height: 800, ////////// 棋盘中高度
  columns: 15, ////////// 棋盘列数
  rows: 15, ///////////// 棋盘行数
  gridSize: 50, ///////// 棋盘网格大小
  gridColor: "#f00", // 棋盘网格颜色
  chessRadius: 20, ////// 棋子的半径
  isBlack: true, //////// 黑棋先手
  chessData: [], //////// 棋盘上的棋子数据
  winChessCount: 5, ///// 五子棋: 当然是连续5个算赢
  switchPlayer() {
    state.isBlack = !state.isBlack;
  },
  getChess() {
    return this.isBlack ? CHESS_TYPE.BLACK : CHESS_TYPE.WHITE;
  },
  getChessName() {
    return this.getChess().name;
  },
  getChessColor() {
    return this.getChess().color;
  },
  getChessValue() {
    return this.getChess().value;
  },
  getChessData(rowIndex, colIndex) {
    return this.chessData[colIndex][rowIndex];
  },
  hasChessData(rowIndex, colIndex) {
    // 判断某个位置是否有棋子了, 不能重复下棋子到同一个位置
    const value = this.getChessData(rowIndex, colIndex);
    return [CHESS_TYPE.BLACK.value, CHESS_TYPE.WHITE.value].includes(value);
  },
  putChessData(rowIndex, colIndex) {
    // 给棋盘数据设置棋子数据
    this.chessData[colIndex][rowIndex] = this.getChessValue();
    this.putChessCount += 1;
  },
};

function init() {
  initCanvasContext();
  drawGrids();
  initCanvasEvents();
  renderToDom(document.getElementById("app"));
}

function initCanvasContext() {
  const canvasDom = document.createElement("canvas");
  setContext(canvasDom.getContext("2d"));

  const { width, height } = state;
  canvasDom.width = width;
  canvasDom.height = height;
}

function drawGrids() {
  const ctx = getContext();
  const { columns, rows, gridSize, width, height, gridColor, chessData } = state;

  ctx.strokeStyle = gridColor;
  const endX = width - gridSize;
  for (let i = 1; i <= rows; i++) {
    const y = i * gridSize;
    ctx.moveTo(gridSize, y);
    ctx.lineTo(endX, y);
    ctx.stroke();
  }

  const endY = height - gridSize;
  for (let i = 1; i <= columns; i++) {
    const x = i * gridSize;
    ctx.moveTo(x, gridSize);
    ctx.lineTo(x, endY);
    ctx.stroke();
  }

  const chessDataCount = Math.max(columns, rows);
  for (let i = 0; i <= chessDataCount; i++) {
    chessData.push([]);
  }
}

// 渲染到页面上
function renderToDom(containerDOM) {
  createTipDom(containerDOM);
  const ctx = getContext();
  containerDOM.append(ctx.canvas);
  updateTipMsg();
}

// 创建提示信息元素
function createTipDom(containerDOM) {
  const tipDiv = document.createElement("div");
  tipDiv.id = "tip";
  containerDOM.append(tipDiv);
}

// 更新提示信息
function updateTipMsg() {
  const tipDiv = document.getElementById("tip");
  if (!tipDiv) return;
  tipDiv.textContent = `请 ${state.getChessName()} 落子`;
}

// 初始化 canvas 交互事件
function initCanvasEvents() {
  const ctx = getContext();
  ctx.canvas.addEventListener("click", (e) => {
    const { gridSize } = state;
    const { offsetX, offsetY } = e;

    // 判断其实是否在棋盘之内
    if (!isInBoard(offsetX, offsetY)) {
      console.log("请在棋盘内点击", { offsetX, offsetY });
      return;
    }

    // 让棋子下在线的交汇处
    const rowIndex = getGridIndex(offsetX, gridSize);
    const colIndex = getGridIndex(offsetY, gridSize);
    const x = rowIndex * gridSize;
    const y = colIndex * gridSize;
    console.log({ x, y, rowIndex, colIndex });

    if (state.hasChessData(rowIndex, colIndex)) {
      alert("这个位置已经有棋子了!");
      return;
    }

    putChess(x, y, rowIndex, colIndex);
    if (isWin(rowIndex, colIndex)) {
      restartGame(`${state.getChessName()}已经赢了!`);
      return;
    }
    state.switchPlayer();
    updateTipMsg();
  });
}

// 判断其实是否在棋盘之内
function isInBoard(x, y) {
  const { width, height, gridSize } = state;
  const halfGridSize = gridSize / 2;
  const minX = halfGridSize;
  const minY = halfGridSize;
  const maxX = width - halfGridSize;
  const maxY = height - halfGridSize;
  return x > minX && x < maxX && y > minY && y < maxY;
}

// 计算点击的是第几个格子
function getGridIndex(pos, gridSize) {
  // 其实就是要得到距离 v, 最近(gridSize)的倍数数字
  // v 就是点击的位置(但是有可能不是 gridSize 的倍数数字)
  // Math.floor((x + 25) / 50) * 50, 这样就可以得到
  // 50 的倍数并向下取整, +25是因为是向下取整所以需要加上半
  // 个格子宽度, 这样点击一个格子右侧的时候才会准确
  const halfGridSize = gridSize / 2;
  return Math.floor((pos + halfGridSize) / gridSize);
}

// 放置棋子
function putChess(x, y, rowIndex, colIndex) {
  drawChess(x, y);
  state.putChessData(rowIndex, colIndex);
}

// 绘制棋子
function drawChess(x, y) {
  const ctx = getContext();
  ctx.beginPath();
  ctx.arc(x, y, state.chessRadius, 0, Math.PI * 2);
  ctx.fillStyle = state.getChessColor();
  ctx.fill();
  ctx.closePath();
}

// 判断是否已经赢了:任意一个方向连续有5个棋子就算赢棋了
function isWin(rowIndex, colIndex) {
  return (
    // 竖向查找
    checkRows(rowIndex, colIndex) ||
    // 横向查找
    checkCols(rowIndex, colIndex) ||
    // 左上 -> 右下 查找
    checkBackslash(rowIndex, colIndex) ||
    // 左下 -> 右上 查找
    checkSlash(rowIndex, colIndex)
  );
}

// 通用的方向检查函数
function checkDirection({ rowIndex, colIndex, directions, limit }) {
  const targetChess = state.getChessValue();
  let lineChessCount = 1; // 在一行的棋子个数

  // 初始化两个方向的搜索信息
  const [dir1, dir2] = directions;
  const search1 = {
    rowIndex: rowIndex + dir1.rowIndex,
    colIndex: colIndex + dir1.colIndex,
    isNeed: true,
  };
  const search2 = {
    rowIndex: rowIndex + dir2.rowIndex,
    colIndex: colIndex + dir2.colIndex,
    isNeed: true,
  };

  let index = limit;
  while (index > 0) {
    if (lineChessCount === state.winChessCount) {
      return true;
    }

    // 检查第一个方向
    if (
      search1.isNeed &&
      search1.rowIndex > 0 &&
      search1.rowIndex <= limit &&
      search1.colIndex > 0 &&
      search1.colIndex <= limit
    ) {
      const chess = state.getChessData(search1.rowIndex, search1.colIndex);
      if (chess === targetChess) {
        lineChessCount += 1;
        search1.rowIndex += dir1.rowIndex;
        search1.colIndex += dir1.colIndex;
      } else {
        search1.isNeed = false;
      }
    }

    // 检查第二个方向
    if (
      search2.isNeed &&
      search2.rowIndex > 0 &&
      search2.rowIndex <= limit &&
      search2.colIndex > 0 &&
      search2.colIndex <= limit
    ) {
      const chess = state.getChessData(search2.rowIndex, search2.colIndex);
      if (chess === targetChess) {
        lineChessCount += 1;
        search2.rowIndex += dir2.rowIndex;
        search2.colIndex += dir2.colIndex;
      } else {
        search2.isNeed = false;
      }
    }

    index--;
  }
  return false;
}

// 竖向查找是否有5个颜色相同的棋子
function checkRows(rowIndex, colIndex) {
  return checkDirection({
    rowIndex,
    colIndex,
    directions: [
      { rowIndex: -1, colIndex: 0 }, // 向上
      { rowIndex: 1, colIndex: 0 }, // 向下
    ],
    limit: state.rows,
  });
}

// 横向查找是否有5个颜色相同的棋子
function checkCols(rowIndex, colIndex) {
  return checkDirection({
    rowIndex,
    colIndex,
    directions: [
      { rowIndex: 0, colIndex: -1 }, // 向左
      { rowIndex: 0, colIndex: 1 }, // 向右
    ],
    limit: state.columns,
  });
}

// 左上 -> 右下 查找(反斜线)
function checkBackslash(rowIndex, colIndex) {
  return checkDirection({
    rowIndex,
    colIndex,
    directions: [
      { rowIndex: -1, colIndex: -1 }, // 左上
      { rowIndex: 1, colIndex: 1 }, // 右下
    ],
    limit: Math.max(state.columns, state.rows),
  });
}

// 左下 -> 右上 查找(斜线)
function checkSlash(rowIndex, colIndex) {
  return checkDirection({
    rowIndex,
    colIndex,
    directions: [
      { rowIndex: 1, colIndex: -1 }, // 左下
      { rowIndex: -1, colIndex: 1 }, // 右上
    ],
    limit: Math.max(state.columns, state.rows),
  });
}

// 一方胜利, 重启游戏
function restartGame(message) {
  requestIdleCallback(() => {
    // 异步弹出通知, 让棋子先画出来
    // 否则还没来得及渲染棋子就直接alert卡住了
    window.alert(message);
    window.location.reload(true);
  });
}

html

<!doctype html>
<html lang="zh-cn">
  <head>
    <meta charset="UTF-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <meta name="referrer" content="no-referrer" />
    <link rel="stylesheet" href="./styles.css" />
    <title>title</title>
  </head>
  <body>
    <div id="app"></div>
    <script type="module" src="./index.js"></script>
  </body>
</html>

css

* {
  margin: 0;
  padding: 0;
}

#app {
  padding: 30px 0;
}

#app canvas {
  display: block;
  background: #ccc;
  margin: 0 auto;
}

#app #tip {
  margin-bottom: 20px;
  font-size: 18px;
  font-weight: bold;
  color: #f00;
  text-align: center;
}

快速开始 ​

快速开始:体验用代码画图 ​

思考 🤔 ​

画线条 ​

绘制线条并设置样式 ​

绘制多个线条 ​

利用线条绘制一些简单图形 ​

闭合路径 ​

绘制虚线 ​

填充图形 ​

非零环绕原则 ​

练习:绘制折线图表格 ​

绘制/清除矩形 ​

渐变色 ​

绘制圆弧 ​

基础知识了解 ​

绘制圆形 ​

绘制扇形 ​

绘制饼状图 ​

绘制文字 ​

绘制图片 ​

形变 ​

合成模式 ​

图形交互 ​

使用 HTMLCanvasElement 实例方法压缩图片体积 ​

Canvas 练习 ​

画板工具 ​

实现截图功能 ​

刮刮乐刮奖效果 ​

弹幕效果 ​

五子棋游戏 ​

快速开始

快速开始:体验用代码画图

思考 🤔

画线条

绘制线条并设置样式

绘制多个线条

利用线条绘制一些简单图形

闭合路径

绘制虚线

填充图形

非零环绕原则

练习:绘制折线图表格

绘制/清除矩形

渐变色

绘制圆弧

基础知识了解

绘制圆形

绘制扇形

绘制饼状图

绘制文字

绘制图片

形变

合成模式

图形交互

使用 HTMLCanvasElement 实例方法压缩图片体积

Canvas 练习

画板工具

实现截图功能

刮刮乐刮奖效果

弹幕效果

五子棋游戏
